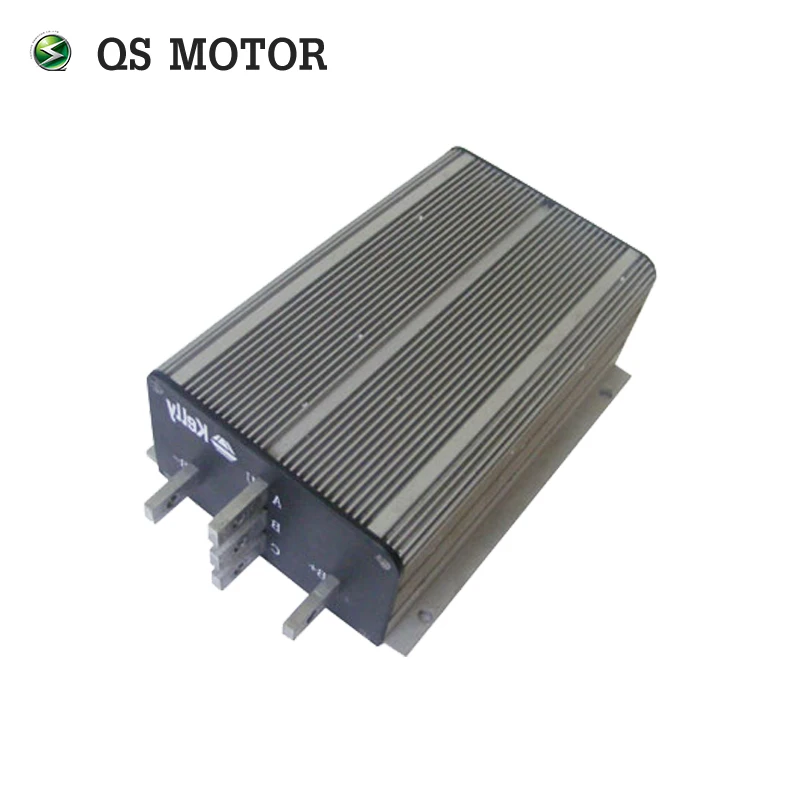

Kelly controllerKHB72601,24-72V,600A,Opto BLDC Controller/With Regen for electric in wheel hub motor

Country/Region of Manufacture china

Manufacturer Part Number a

Item Length 30

Special Features control

Other Part Number a

Item Weight 6.5

Placement on Vehicle rear

Interchange Part Number a

Material Type aluminium

Item Width 15

Item Height 10

Brand Name Kelly

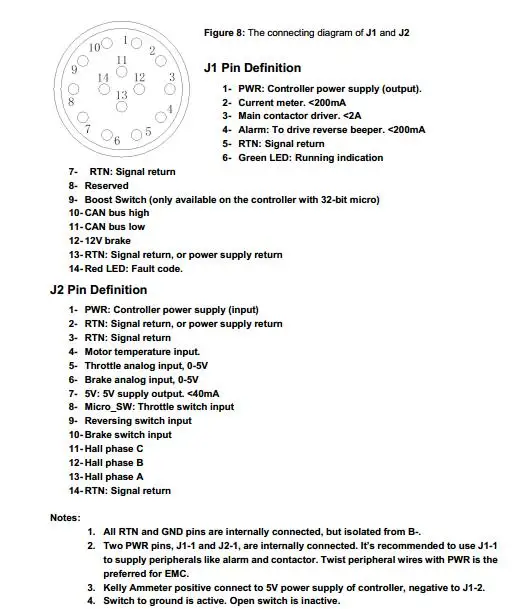

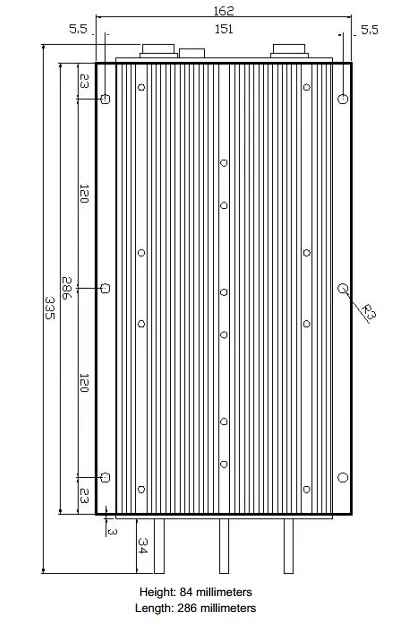

Kelly controllerKHB72601,24-72V,600A,Opto BLDC Controller/With Regen for electric in wheel hub motor It's special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 8000W. Key Features 1). Very Easy connect 2). Can match with almost brushless DC motor 3). Soft start can be adjusted 4). Programmable by bluetooth Notice Before Order(Producing time/Warranty/Package/Certification etc.) Pls. click below hyperlink of picture. 1.Generally SPEC 1. sine wave controller, programmable, with regen function 2. Motor Current Limit, 20 seconds:600A ,Motor Current Limit, continuous: 300A 3. Battery Voltage: 24-72V rated, max. 96V 4. Thermic Probe: KTY83-122 5. Including one controller + USB convertor cable + matched plug 6. net weight: 5.5kg 7. waterproof IP54 8. default not including bluetooth, waterproof(those function are optional); CAN BUS 2. Kelly ControllerSoftware Interface Here are the clear and easy adjustment softwareinterface. 3.QSKHB-72601controller drawing Here is drawing of our normal QSKHB12601. 4. Pin Definition(TBD) Pls. contact with sales first if you don't know how to connect the controller with motor and other parts. 5. Questions before order 1). If you want to buy the controller separately, please advise us the parameters of your matching motor? Such as Motor Voltage, Wattage, Speed... 2). If you need any other special functions for this controller, please feel free to contact to us. Thank you! 6. Other Motor Kits and more controller models If you are interested on more models of controller, pls. refer to below data sheet, and click the hyperlink of picture.
