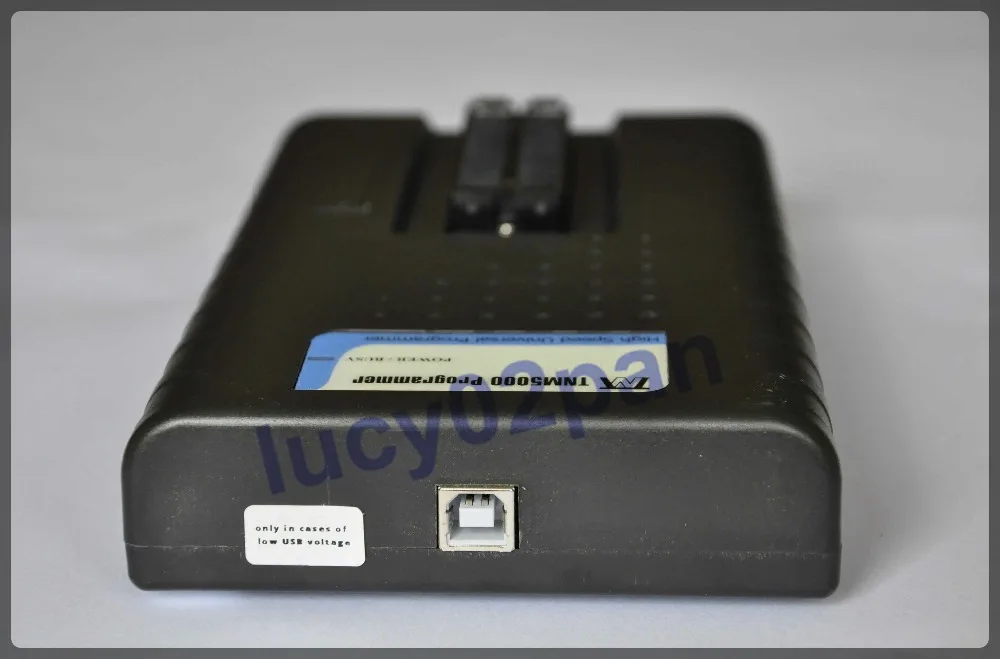

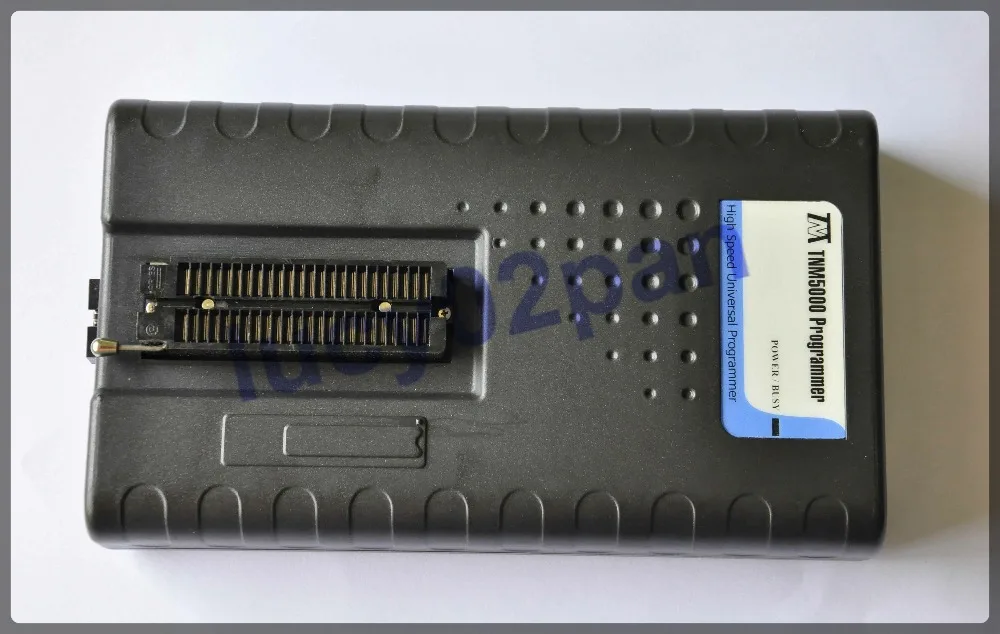

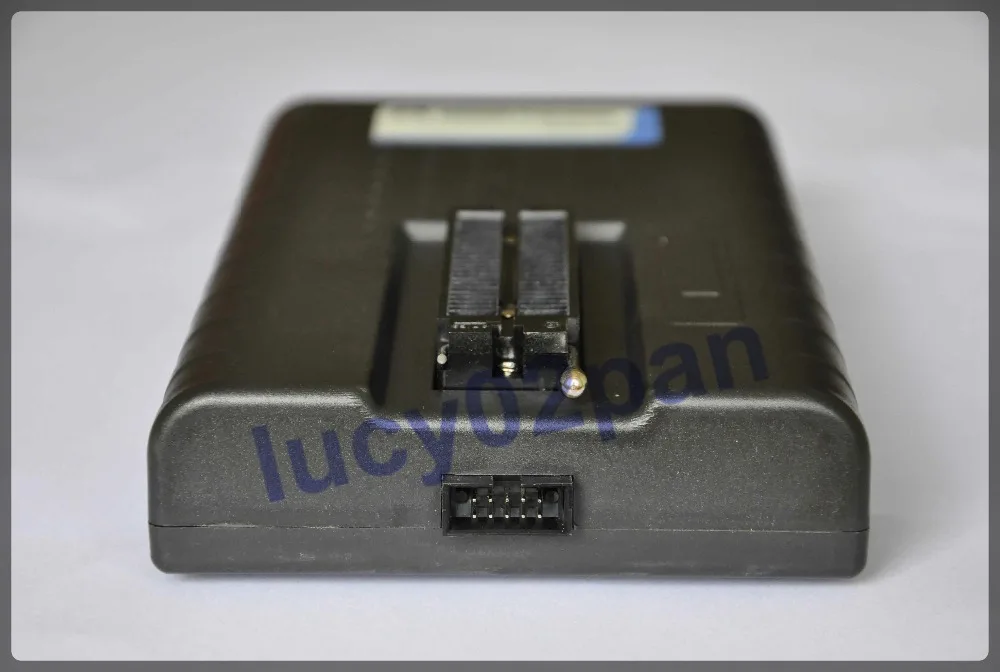

TNM 5000 supportedLanguage:English / Russian/ Arabic / French / Polski / Turkish / Persian / Chinese TNM5000Selling Points: 1.very fast becuase we use USB2 for connect to PC 2.PIN detect and detect of ic,for example in pin detect if one or more pin in chip no conect at ZIF soket TNM5000 will inform you 3. device list is 23000 chip 4. no need power supply TNM 5000 Programmer Feature: *23000+Supported Devices Flash Memory (Parallel / Nand /Serial) , EPROM , EEPROM , Serial EEPROM , Microcontroller , NVRAM , FRAM , CPLD , PLD , FPGA). *48-PinsZIF Socket with Pin Continuity tester & 10-Pins ISP/JTAG Connector. * USB 2.0High Speed,Program 1 Gbit Nand Flash less than 50 sec , Reading Serial Flash memory with 6 Mbit/Sec Speed. *Auto detectionof most flash Memories/Microcontrollers with Device ID. * User-friendly software forWindows XP/VISTA/7/8 (32,64 bits). In addition, can supportmultiple languages(English / Chinese / Arabic / French /FARSI/Russian/Polish......). More languages & Devices can be added by customer request. You Can Download Software & run it in Demo mode to evaluate it. *Multiple Programmingis possible by attaching 2 or more Programmers to one PC. * Very low cost Main Unit & Low cost adaptors by using one adaptor for all 32/40/48 TSOP flash memories . All 56 pins flash memories by one TSOP56 adaptor. * Special Abilities like, ALtera U S B B l a s t e r Emulation for Quartus Software, Serial Port Emulation , Vehicle ECU , Immoblizer & Dashboard microcontroller Support. TNM5000 Programmeris very fast , Low cost , High performance Universal Programmer , specially designed for supporting Flash memories , Nand flashes , Serial EEPROMS , Microcontrollers & Automotive ECU , Dashboard parts. The Heart of TNM5000 is a 500.0000 Gate FPGA with a designed CPU core with 96MHz Clock for fast programming of chips. TNM5000Can support a wide range of chips as below: Parallel Flash Memories:up to 56 pins parallel flash memories are supported by TNM5000. it Supports different kind of packages (PLCC , TSOP1 , TSOP2 ,VSOP & ...). All Flashes can be automatically detected by software in case of unreadable device names. By using a single adaptor for all 32-48 pins TSOP flashes , user only need 1 adaptor for over 2000 flash chips. Nand Flash Memories:TNM5000 has an additional Nand+ software , specially designed for Nand flash memories. Nand+ Software has one of the most complete list of Nand flash Memories with algorithms for correction of bad data in MLC Nand Flashes. TNM5000 is one of the fastest Nand Programmers in the world with Read & Write Speed up to 8 MegaByte per Second. All Nand Flashes can be automatically detected by software in case of unreadable or remarked device names. Serial Flash Memories:All 8-16 Pins Serial SPI flash memories are supported by TNM5000. All SPI flash Memories can be detected automatically by software in case of unreadable device names. It reads & programs SPi flashes with maximum safe speed on ZIF (6-7 Mbit/second) . Also it Unprotects the write protected flashes before writing data to it. Microcontrollers: ATMEL: All AVR 8 bits chips (ATMEGA/ATTINY/AT90S) are supported on ZIF Scocket & by ISP cable. High Voltage Parallel on ZIF Programming of AVR up to 64 pins is supported. newly introduced ATXMEGA Series are supported by both PDI & JTAG Method. Old C51 series & new single cycle C51 series are completely supported. All the above series can be detected automatically by TNM5000. ARM7 programming by JTAG is supported. Microchip: One of the most complete device list for microchip PIC microcontrollers including all PIC12F /PIC12C /PIC16C / PIC16F / PIC18F / DPIC33F / J & K Series. Devices up to 40 Pins can be programmed on ZIF , All PICs can be detected automatically & programmed by ISP cable. Others: ST, SST, Philips (NXP) , Motorola , Syncmos, Silicon Lab , ICSI , Infineon , Intel , Winbond & ... Automotive MCUs:Supporting of ST10F & TMS370 Series by ISP cable for many BOSCH/VALEO/SAGEM ECUs (complete ST10F support ofXPROG-mprogrammer device list). supporting of siemense & infineon SAK-C167 connected to 44 or 48 pins flash (Siemense/BOSCH/SAGEM S2000 ECU) likeHSE FlasHitProgrammer. Supporting NEC & Motorola Devices for Dashboards. PLD/CPLD/FPGA:Supporting All ALTERA JTAG Devices by emulation ofUSB BlasterProgrammer in Quartus Software. Supporting of Xilinx CPLD/FPGA with jed file. Fast Xilinx FPGA configuration with bit file. Supporting of GAL/PALCE Devices with special option for PALCEunlocking. Software:With multiple language support (English / Chinese / Arabic / French /FARSI). More languages & Devices can be added by customer request. You Can Download Software & run it in Demo mode to evaluate it. ADAPTORS:We have a policy for minimum price for adaptors, our adaptors can be used for many different packages. In many cases we support other programmer manufacturers adaptors on our device. Here are example of some of our adaptors: For All 32/40/48 Pins TSOP Type-1 (20mm Pin-Pin Lenght) , You Need Only one adaptor Model 548T2 For All 56 Pins TSOP Type-1 (20mm Pin-Pin Lenght) , You Need Only one adaptor Model 556T2 , with different sets of bottom plates which can be easily exchanged by user. Some available adapters: Our factory: one TNM5000 Programmer one USB Cable (for both power supply and data communication) one Installation CD one ICSP cable onePLCC IC extractor one SOIC8 SMD Programming/Testing Clip (support programming the 8-pin chips on board, width: 150mil and 200mil) Twelveadapters: 1.one Complete TSOP56 nand flash adapters set 2.one pc PLCC20-DIP20 adapter 3.one pc PLCC28-DIP24 adapter 4.one pc PLCC32-DIP28 adapter (can adjust voltage) 5.one pc PLCC32-DIP32 adapter 6.one pc PLCC44-DIP40 two-in-one adapter(can support 16bit EPROM and 8051MCU) 7.one pc TSOP48-DIP48 ZIF adapter 8.one pc SOIC16-DIP16 ZIF adapter (150mil) 9.one pc SOIC20-DIP20 ZIF adapter (200mil) 10.one pc SOIC28-DIP28 ZIF adapter (300mil) 11.one pc 532TS2 adapter 12. one pc SSOP28-DIP28 ZIF adapter (170mil) 1.Allitemswillbecheckedcarefullybeforeshippingtomakesurethemcanworkproperly. 2.Afterpaymentreceived(24hoursafteryoumakepayment),wewillshiptheitemstoyoubetween1-4days. 3.We'lldoourbesttomaketheitemstoarriveontime.Asthecourier,weatherandlocal customs,maybesometimesit'llbedelayed.Yourunderstandingwillbehighlyappreciated. 4.IfyouaddressisremoteplacebyDHL/TNT,havetoaddmore35usdasshippingcost. 5.ForRussianFederation/Turkey/Brazilcustomer,wesuggestshipbyChinapostmail/Hkairmail/EMS/ePacket,itiseasiertoclearthecustomsinyourcountry.ForBrazilcustomer,plsofferusyourCPForCNPJnumber.ForRussianFederationcustomer,pleasewriteyourFULLname,manythanks. 6.Whenthepackagearriveatyourlocalcustoms,plscontactthecustomsasapandhandoverthetariff, thefeesdependonyourcountry,ifyoudon’tpayforthetariff,youcan'tgetthepackage, andwewon'tabandonthepackage,ifyouwanttoreturnback,youshouldpayfortheshippingcost,thanks. Alloftheitemshave3yearwarranty,foranyqualityproblem,wecanrepairorexchangeanewoneforfreein1year.Afteroneyear,wecanstillsupplytherepairservice,onlychargebasicfees.Weoffertechnicalsupportandlifelongafter-saleservices. 1.DoesTNMprogrammerhavepowersupply?Powersupplyisnotneeded,TNMprgorammeruseusbpower,Ifusbpowerisweakafterstartprogrammerinwindows,programersoftwaregivemessagesforuseexternalpowersupply. 2.Couldyouspecifythecustomscostasmydemand?Yes,wewillwritecustomsvalueasyourdemand.Pleasetellushowmuchdeclarevalueweshouldwriteoninvoice. Ifyouhaveanyqualityproblem,pleasecontactusfirst,wewilldoourbesttosolveitasap,pleaseDONOTopendisputeorleavenegativefeedbackbeforecontactingus,wewillfindagoodwaytosolveproblems,thankyou! Good news: If you buy the second time(including the third time and so on) for our programmer or you recommend a new customer for usor PAST OUR LINK ON YOUR LOCAL ELECTRONIC FORUM,then you becomeour VIP customer,we will rebate you2% of the payment the first time you made,thanks for your support,we hope win-win!
